DT Research DT166: Hardware

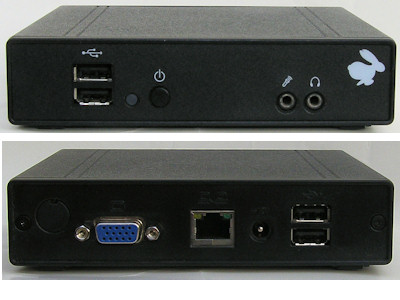

DT Research DT166 Thin Client

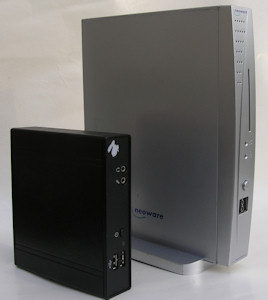

The DT166 is small - hence the extra photo to compare it with a Neoware Capio/CA5/etc.

Specifications

The basic specs are:

Processor
   Type
   Speed
Geode GX533
400MHz
Memory
   Flash
   RAM
64Mb
128Mb (fixed)
Video
   Chip
   Max resolution
CS5535
1280 x 1024 16-bit colour
Ports
   Network
   USB
   Serial
   Parallel
   PS/2
10/100
4 x USB1.1
0
0
None
Power
   Plug
   Input
   Off
   Running
Coax: 5.5mm/2.5mm
12V 1.2A (from label)
0W
~9W
Dimensions
W x H x D14cm x 3.3cm x 13cm

The DT166 runs Linux. There is no date of manufacture.

Origins

As you might guess by the logo in the corner of the front panel this unit has been badged by somebody else. The label on the bottom makes reference to www.gorabbit.net - but this domain no longer exists. It was part of bosanova.net who are now called 10zig.

DT Research still offer a DT166 for sale (the DT166LX), but this is now part of the WebDT range and is based on the LX800. The current one (2017) appears to be fitted with 512MB of RAM rather than the 128MB of the earlier versions. Further details of the LX800 version can be found under the 10Zig RBT-820 entry.

Processor

Linux cpuinfo reports:

CPU family:5
model:5
model name:Geode(tm) Integrated Processor by National Semi
Stepping:2
flags:fpu de pse tsc msr cx8 pge cmov mmx mmxext 3dnowext 3dnow

pci

The output of Linux's lspci:

00:01.0 Host bridge: National Semiconductor Corporation Geode GX2 Host Bridge (rev 21)
00:01.1 VGA compatible controller: National Semiconductor Corporation Geode GX2 Graphics Processor
00:0d.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL-8100/8101L/8139 PCI Fast Ethernet Adapter (rev 10)
00:0f.0 ISA bridge: National Semiconductor Corporation CS5535 ISA bridge (rev 13)
00:0f.2 IDE interface: National Semiconductor Corporation CS5535 IDE
00:0f.3 Multimedia audio controller: National Semiconductor Corporation CS5535 Audio
00:0f.4 USB controller: National Semiconductor Corporation CS5535 USB (rev 06)
00:0f.5 USB controller: National Semiconductor Corporation CS5535 USB (rev 06)

Power Supply

The DT166 requires an external 12V power supply. The label on the bottom of the DT166 reads "12V 1.2A". Unfortunately the plugs on my standard 12V power supplies don't fit the DT166. Whilst the diameter of the socket suits the usual 5.5mm plug, the central pin on the socket is a 2.5mm fitting rather than the more popular 2.1mm fitting. For testing purposes I ended up using a universal power supply which had a range of interchangeable tips.

CMOS Battery

The battery for the CMOS memory is a CR1220 rather than the more usual CR2032. I guess they decided a smaller battery was easier to fit in.

Expansion

click for larger image

Flash: The Flash memory in the DT166 is a Disk-On-Module (DOM) plugged into a standard 44-pin IDE connector. I've removed it and fitted a Compact Flash adaptor in its place and successfully booted Linux from various CF cards.

RAM: As you can see in the photograph the RAM is soldered to the motherboard and so is fixed at 128MB.

Click on the photo for a larger version.




Any comments? email me. Added September 2010    Last update August 2017
